18" 24 Volt AC High Capacity Ignition System

Upgrade your outdoor fire features with the All-Weather Electronic Ignition System – High Capacity (AWEIS HC), designed for those who demand more from their fire installations. The AWEIS HC is the robust, larger sibling of the Standard Capacity (AWEIS SC), offering significantly greater gas output to fuel larger and more dramatic fire features.

Key Features:

• Flame / Heat Sense: Thermopile sensor for accurate flame and heat detection.
• Ignition Type: Hot Surface Ignition (Glow Plug) for reliable ignition performance.
• Ignition Sequence: Intermittent Pilot ensures safe and efficient operation with a dedicated pilot ignition source.
• Max. Btu Output: An impressive 512,000 Btu/hr, making it ideal for substantial fire features that require a high volume of gas.
• Inlet / Outlet Size: ¾” FPT for robust gas flow, suitable for larger installations.
• Operating Voltage: 24 volts AC, providing consistent power for the ignition system.
• Inlet Gas Pressure Limit: 2.0 psi, allowing flexibility in various gas supply conditions.

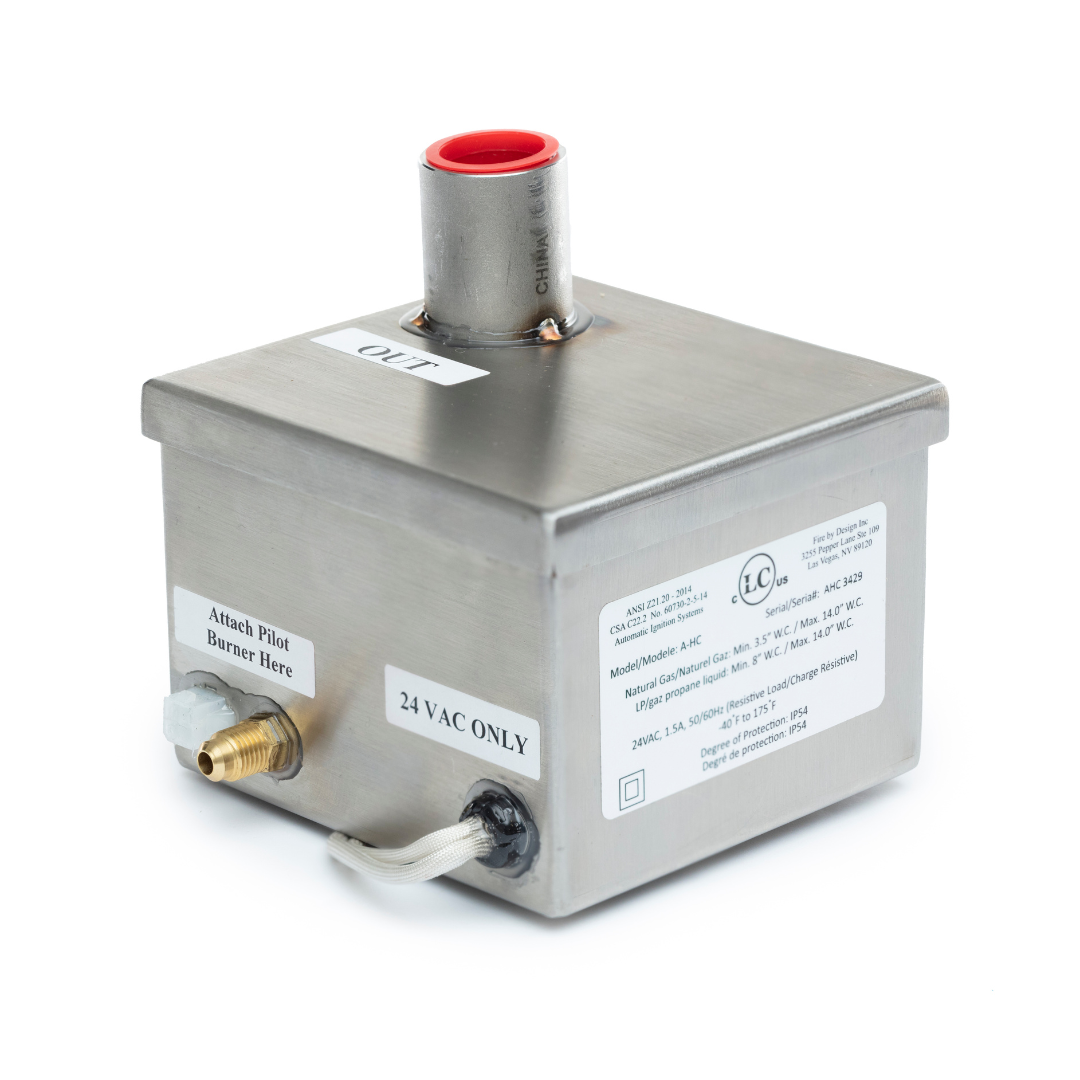

• Valve Enclosure Dimensions: 4 ½″ x 4 ½″ x 5″, offering a slightly larger size to accommodate the increased capacity while remaining compact enough for versatile installation.

Field Serviceable Options:

For added convenience and serviceability, the AWEIS HC is available in field serviceable models, accommodating both natural gas and liquid propane applications. Each unit comes equipped with:

• Pilot Burner Assembly: 18" standard field serviceable pilot burner, with additional sizes available upon request (12"/18"/24"/30"). Extensions are also offered beyond these sizes.
• 24 Volt AC Transformer: Ensures stable power delivery to the system.
• Ignition Control Module: Oversees the ignition process for dependable operation.
• Heat Deflector Shield: Shields components from excessive heat, prolonging system life.
• Installation Instructions: Detailed guide for easy setup and integration into your fire feature.

Available Models:

HCGNG-FS: High Capacity AWEIS with 18" Field Serviceable Pilot Burner for Natural Gas. (Inlet Size: ¾" FIP, Outlet Size: ¾" FIP) - 780K BTU/hr. Compatible with (2 Pin Molex) connections.

HCGLP-FS: High Capacity AWEIS with 18" Field Serviceable Pilot Burner for Liquid Propane. (Inlet Size: ¾" FIP, Outlet Size: ¾" FIP) - 780K BTU/hr. Compatible with (2 Pin Molex) connections.

The AWEIS HC is the ideal choice for large-scale fire features that require significant gas output to achieve the desired visual and thermal impact. Whether you’re installing a grand fire pit, a large fire bowl, or another elaborate fire feature, the AWEIS HC delivers the power and reliability you need.

Choose the AWEIS HC for superior performance and serviceability in your next fire feature project.

Available in 30 VDC and 120 VAC as well. Must call for these options.
