18" 24 Volt AC Standard Capacity Ignition System

Discover the ultimate solution for reliable and efficient fire feature ignition with the All-Weather Electronic Ignition Systems – Standard Capacity (AWEIS SC). Engineered to deliver robust performance in compact spaces, the AWEIS SC is the smallest and most versatile electronic ignition system available today, making it the perfect choice for fire bowls, fire pits, and other outdoor fire features with limited vertical space.

Key Features:

• Flame / Heat Sense: Thermopile for dependable flame detection and heat sensing.
• Ignition Type: Hot Surface Ignition (Glow Plug) ensures quick and efficient ignition.
• Ignition Sequence: Intermittent Pilot with a reliable pilot ignition source.
• Max. Btu Output: 290,000 Btu/hr, providing powerful and consistent flames for most fire feature applications.
• Inlet / Outlet Size: ½” FPT for easy integration with standard plumbing.
• Operating Voltage: 24 volts AC for safe and efficient operation.
• Inlet Gas Pressure Limit: 2.0 psi, accommodating various gas supply conditions.

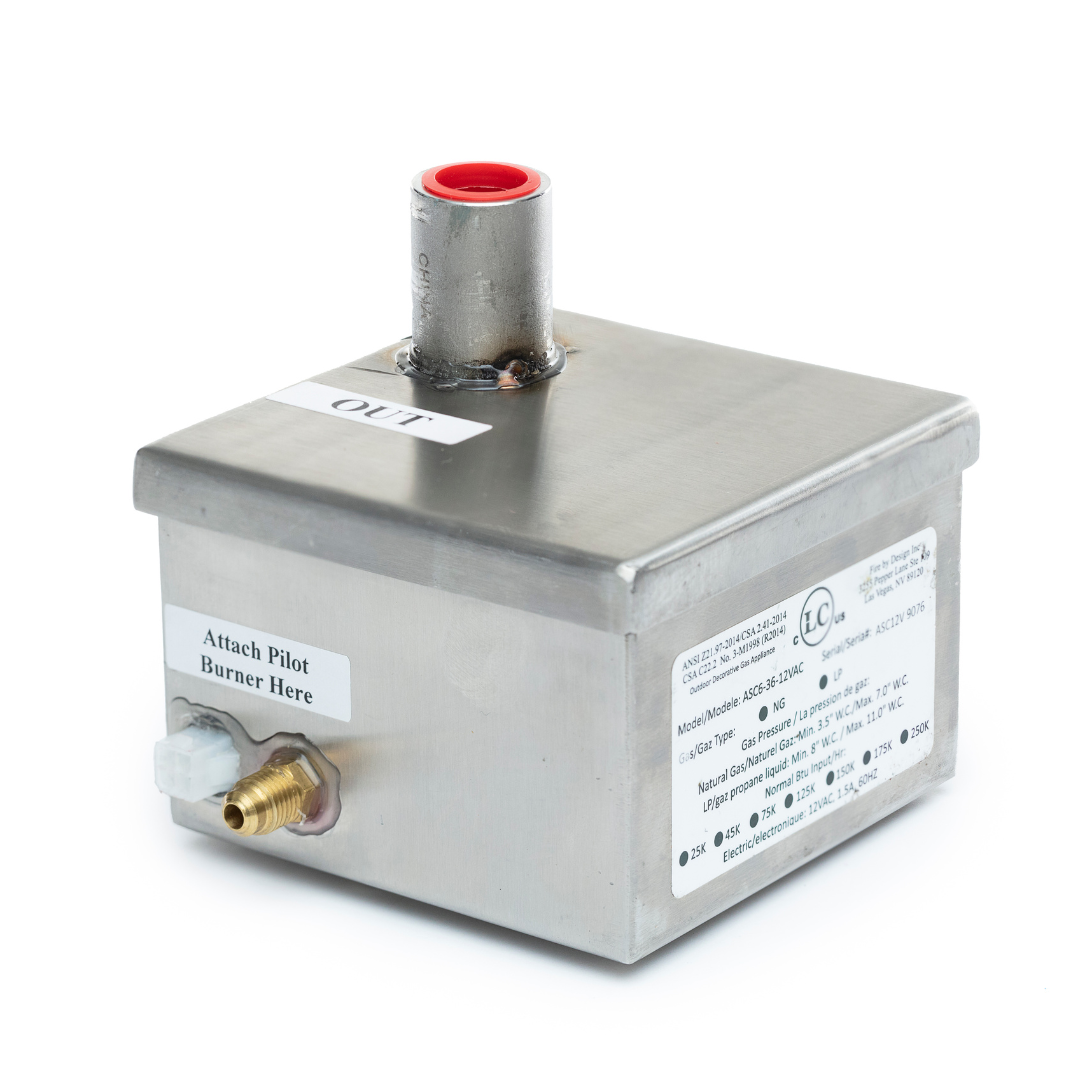

• Valve Enclosure Dimensions: Compact 4 3/8″ x 4 3/8″ x 4 3/8″ size, ideal for installations with limited space.

Field Serviceable Options:

For enhanced versatility and ease of maintenance, the AWEIS SC is available in field serviceable versions, designed for both natural gas and liquid propane applications. Each field serviceable unit includes:

• Pilot Burner Assembly: 18" standard field serviceable pilot burner, with sizes available upon request (12"/18"/24"/30"). Extensions are also available beyond these sizes.
• 24 Volt AC Transformer: Ensures consistent power delivery for ignition.
  Ignition Control Module: Manages the ignition process for reliable operation.
• Heat Deflector Shield: Protects components from excessive heat, prolonging the system's lifespan.
• Installation Instructions: Comprehensive guide for easy setup and integration.


Available Models:

SCGNG-FS: Standard Capacity AWEIS with 18" Field Serviceable Pilot Burner for Natural Gas. (Inlet Size: ½" FIP, Outlet Size: ½" FIP) - 290K BTU/hr. Compatible with (2 Pin Molex) connections.

SCGLP-FS: Standard Capacity AWEIS with 18" Field Serviceable Pilot Burner for Liquid Propane. (Inlet Size: ½" FIP, Outlet Size: ½" FIP) - 290K BTU/hr. Compatible with (2 Pin Molex) connections.

These systems are designed to handle the demands of any outdoor fire feature, whether powered by natural gas or liquid propane. For applications requiring even more gas, consider upgrading to the AWEIS High Capacity System.

Choose the AWEIS SC for your next fire feature installation and experience unmatched reliability, performance, and ease of use.

Available in 30 VDC and 120 VAC as well. Must call for these options.
